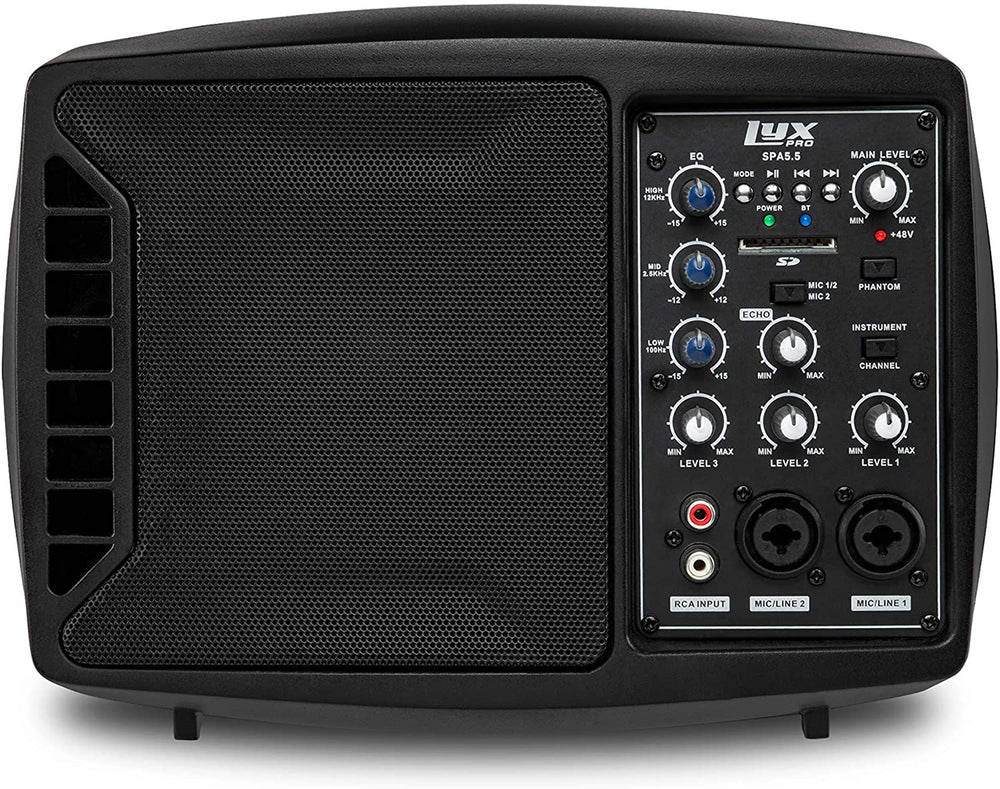

SPA-5.5 Small PA/Speaker Monitor

Music on the go

Easy to transport and a cinch to mount on a microphone stand, the SPA-5.5 Small PA/Speaker Monitor is as versatile as it is reliable! From schools to businesses to home, you can use it as a PA speaker, monitor, amplifier, or a karaoke machine. You can even take it on the go for high-quality vocal and instrumental performances indoors and outdoors.

With the built in Bluetooth technology and SD card slot, you can connect nearly any compatible device to experience the powerful and clear output. This portable sound system is also ideal for monitoring audio devices and accessories, and features phantom power that makes condenser microphones sound crystal clear in nearly any setting. It also includes a 3-channel mixer and 3-band equalizer so you’ll have the best balanced audio available.

Plug in a guitar to start entertaining an audience. Hook up a smartphone via Bluetooth to crank out some favorite tunes. Or attach a microphone to make announcements, give presentations, or hold a fun game night! There’s no end to the usefulness of this Small PA/Speaker Monitor! For best performance, the place on a flat, smooth surface or mount on a microphone stand.

• Plenty of power - Powerful Speaker with integrated Bluetooth & SD card slot
• Easy to transport - Compact, portable Class D amplifier and sound system
• Power multiple ways - Phantom power makes microphones sound crystal clear
• Control your sound - Built-in 3-channel mixer and 3-channel equalizer
• Microphones on the go - Easy to transport and mount on a microphone stand

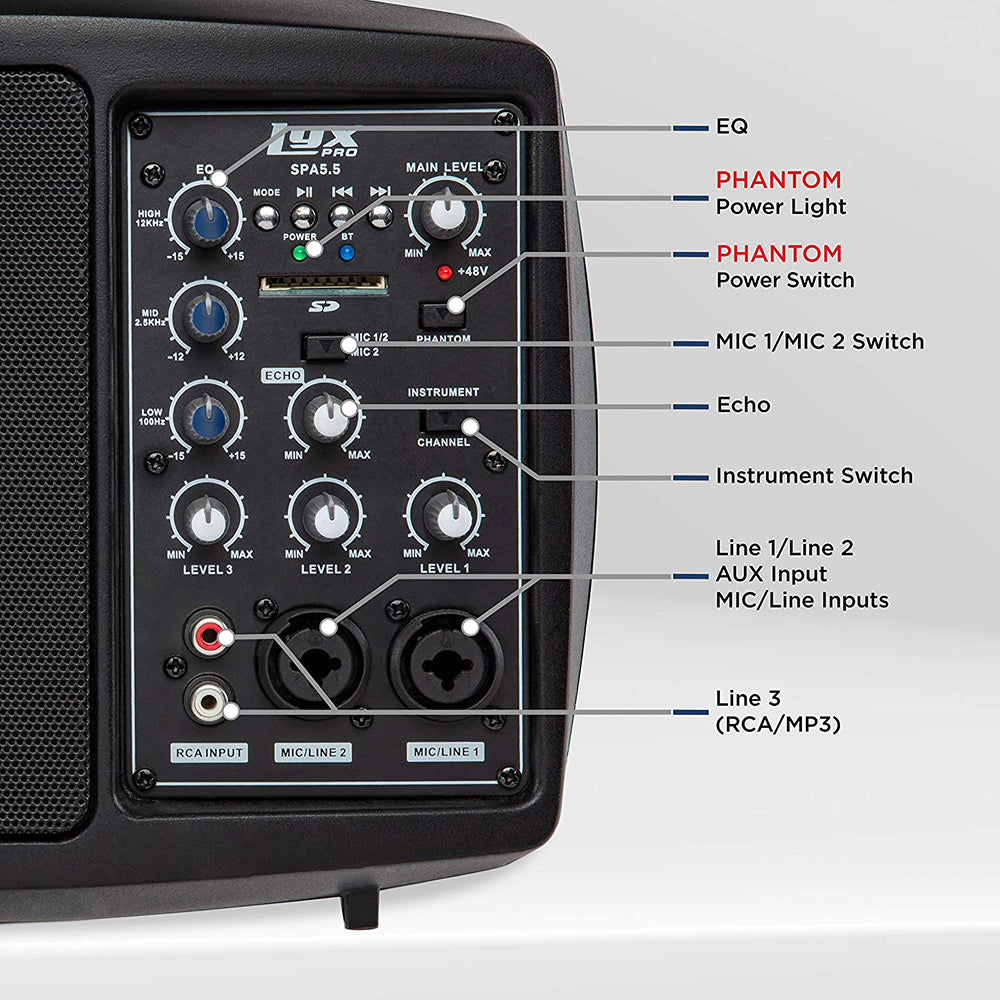

Highlights

• Class-D amplifier
• 3-channel Mixer3-band EQ
• Phantom power supply
• XLR, ¼” inputs
• Mic/Line switch
• Instrument direct connection switch
• RCA, Aux inputs
• XLR Thru connection
• Echo control
• Mounts on a mic stand
• Strong durable construction
• Power on/off switch

SPECIFICATIONS

125W RMS power 150W peak	5" Speaker
Sensitivity:	Line1/Line 2 input
MIC:	-30dBu ± 2dBu
Line:	-10dBu ± 2dBu
Line 3 RCA input:	-10dBu ± 2dBu
Main input:
MIC:	0 DbU ± 2dBu
Line:	0 DbU ± 2dBu
Frequency response (MIC input to AMP out):	20Hz – 20kHz ± 3dB
Phantom power:	+48V
Compression 20 dBu
Input impedance:	20K Ω
Channel level control:	∞ ~ +30dB
Max.	Input level: 20dB
EQ:
High (12kHz):	15dB ± 3dB
Mid (2.5kHz):	15dB ± 3dB
Low (80Hz):	15dB ± 3dB
Connection:
Through XLR, MIC/Line switchable
Main-in:	XLR, 1/4" TRS
Max. SPL:	114dB SPL @ 1M
Frequency response:	80Hz – 14kHz (-10dB); 100Hz – 10Khz (-3dB)
Dynamic EQ:	Processor controlled
Power: Input voltage	100V – 240V AC (T 3.15 A H 250V)
Power consumption:	180W max.

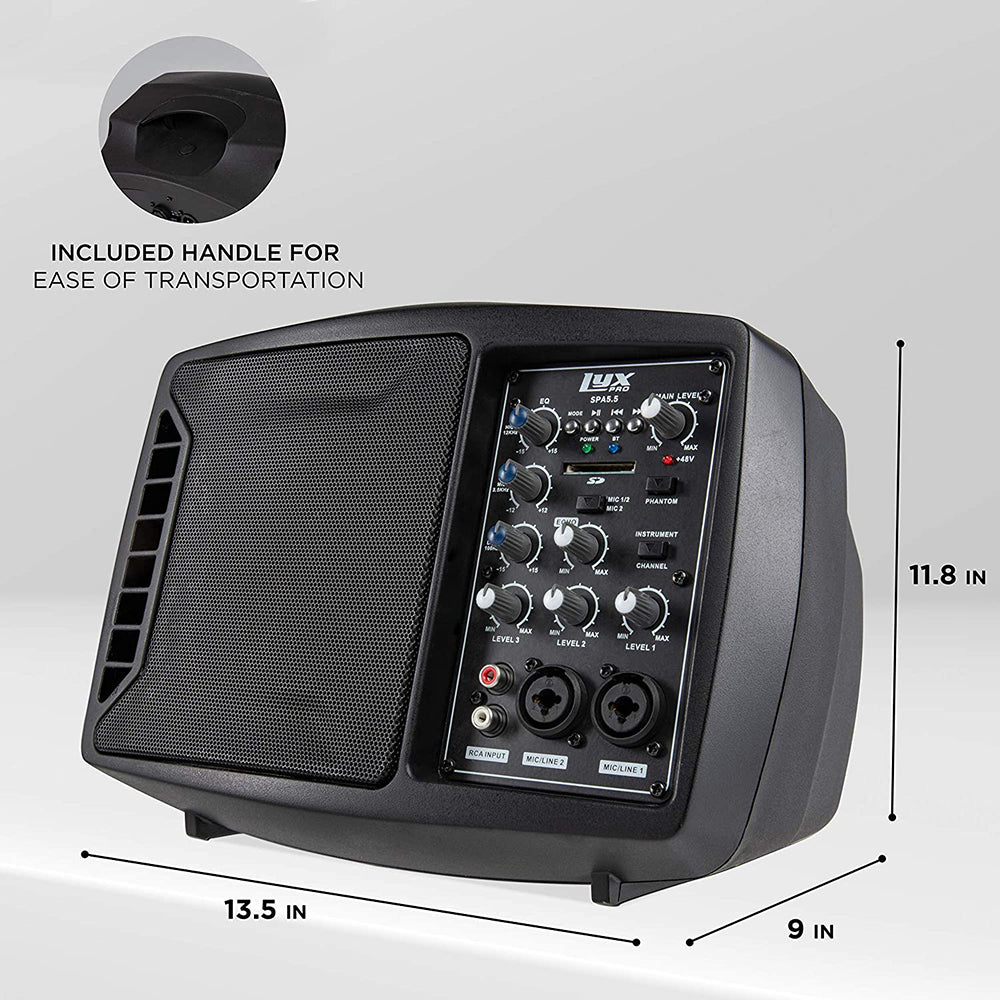

Dimensions:	13.5" x 11.8" x 9"
Weight:	6.1 lbs.

FEATURES
